Letter to the Editor

Functional Regulation of Interleukin-31 Production by its Genetic Polymorphism in Patients with Extrinsic Atopic Dermatitis

Chien-Hui Hong1,2, Hsin-Su Yu2,3, Ying-Chin Ko4, Wei-Chiao Chang5, Hong-Yi Chuang4, Gwo-Shing Chen2,3 and Chih-Hung Lee2,3,6*

1Department of Dermatology, Kaohsiung Veterans General Hospital, 2Department of Dermatology, Graduate Institute of Medicine, 3Department of Dermatology, 4Graduate Institute of Public Health, 5Graduate Institute of Genomic Medicine, Kaohsiung Medical University and 6Department of Dermatology, zKaohsiung Municipal Hsiao-Kang Hospital, Kaohsiung, Taiwan. E-mail:

Accepted May 25, 2011.

Atopic dermatitis (AD) is a common pruritic skin disease that greatly impairs quality of life (1). The pathophysiology of pruritus in AD is complex, but may involve several proinflammatory cytokines. One of these cytokines, interleukin-31 (IL-31), which is mainly expressed by Th2 cells, signals through a heterodimeric receptor composed of IL-31 receptor A (IL-31RA) and oncostatin M receptor on cutaneous keratinocytes (2). In mice, transgenic overexpression of IL-31 induces severe pruritic dermatitis (2). IL-31 gene transcript is also increased in NC/Nga mice with atopic-like dermatitis (3). In humans, it is increased in pruritic AD skin, but not in non-pruritic psoriatic skin (4). At the protein level, IL-31RA expression is increased on the keratinocytes of AD skin (5). Moreover, Raap et al. (6) reported an association between serum IL-31 level and AD severity.

Schulz et al. (7) first sequencing the IL-31 gene from 690 German families, found 15 main single-nucleotide polymorphisms (SNPs). They reported those having haplotype AA to be at risk of developing intrinsic AD (without allergen-specific immunoglobulin E (IgE)), but not extrinsic AD. Moreover, peripheral blood mononuclear cells (PBMCs) from healthy individuals stimulated with anti-CD3 and anti-CD28 showed 3.8 times greater expression of IL-31 mRNA in individuals with AA than in non-A haplotype carriers. Nevertheless, how IL-31 SNPs are associated with blood IL-31 level or disease severity in AD, particularly in extrinsic AD, is not known.

Materials and Methods

We measured blood IL-31, accessed clinical severity, determined IL-31 SNPs, and conducted an in vitro transactivation assay in patients with extrinsic AD and controls. From 2008 to 2009, we recruited 105 patients with extrinsic AD defined by serum level IgE higher than 100 IU/ml) (69 males and 36 females, age 52.2 ± 22.4 years, range 1–71 years) and 210 controls without any atopic diseases (115 males and 95 females, age 55.2 ± 18.4 years, range 5–69 years) from the Department of Dermatology based on Hanifin’s AD diagnostic criteria (8) and from Department of Health Examination in a medical referral centre. PBMCs were separated for DNA extraction (Gentra Puregene blood kit, Valencia, CA, USA) and sera were stored at –70ºC until measured for IL-31 with a commercial enzyme-linked immunoassay (ELISA) kit according to manufacturer’s directions with detection limit set around 50 pg/ml (R&D, Minneapolis, MN, USA). As expected, the extrinsic AD patients had increased serum IgE (mean 497.5 IU/ml) and SCORAD (SCORing Atopic Dermatitis) severity index (45.3). Serum IL-31 was significantly higher in AD patients than in controls (979 pg/ml vs. 212 pg/ml). We also found significant associations between IgE and IL-31, as well as between SCORAD index and IL-31 (Spearman’s association, p = 0.014 and p = 0.018, respectively).

Two IL-31 SNPs were selected for association analysis (Table I). We first selected rs10847385 (IL-31-631 T>G) from the Han Chinese population in the HapMap database. This SNP has a minor allele frequency (MAF) ≥ 0.1, r2 ≥ 0.8. We then selected rs7974857 (IL-31 c. 183 C>G G61G). According to Schultz et al., this IL-31 SNP is significant within exon, and has a MAF of ≥ 0.1. Using real-time PCR, we designed FAM- and VIC-labelled probes of IL-31to detect the SNPs: dbSNP:rs7974857 (forward CACGGCAGCGTGTAATTCTG and backward CACTGACCATTTCTCCTCATTCCA) and IL-31 dbSNP:rs10847385 (forward TCAGGGCCCAGAACCAGAGACTGTG and backward TCCAGAGTTATTGCTTGAAATCCTT). All samples were genotyped by TaqMan Allelic Discrimination Assay (Applied Biosystems, Carlsbad, CA, USA) in 96-well microplates by ABI9700 Thermal Cycler and analysed by the System SDS software version 1.2.3.

The promoters of rs10847385 alleles (A/C) were generated and subcloned into pGL3-Basic vector (Invitrogen, Carlsbad, CA, USA) at the Xho and Hind sites. The forward and reverse primers were: 5´-CTCGAGGATATGAACAAGGATTTCAAG -3´ and 5´-AAGCTTTTCTGGAGCCAGATGTGTT-3´, respectively. The constructs with luciferase reporters were transfected by Lipofectamine 2000 (Invitrogen) into Jurkat cells. The luciferase activity in cell lysate was measured (Promega, Madison, WI, USA) in triplicate.


Both SNPs were tested by χ2 goodness-of-fit to be in Hardy-Weinberg equilibrium. The two SNPs in those with AD were not found to be significantly different in allele and genotype frequency than they were in normal controls (Table I). IL-31 level was similar in rs10847385 and rs7974857 normal controls with either allele A or C, but significantly lower in rs10847385 AD patients with allele type C than in the patients with allele A (215 ± 173 vs. 1023 ± 342 pg/ml) (Fig. 1A). In contrast, IL-31 level was similar in rs7974857 AD patients regardless of allele. Similarly, the SCORAD index was significantly lower in rs10847385AD patients with allele type C than in those with allele A of (20.2 ± 25.9 vs. 52.6 ± 46.8). These findings suggested that IL-31 genetic polymorphism might regulate IL-31 level and could lead to differences in IgE level and clinical severity.

Table I. There were no associations between genotypic and allelic polymorphisms of IL-31 and the occurrence of extrinsic atopic dermatitis (AD)

Genotypic polymorphism

Allelic polymorphism



AD (n = 105)

NC (n = 210)




Genotype p

Allele p



79 (75.2)

177 (84.3)


184 (87.6)

385 (91.7)





2 (0.9)


26 (12.4)

35 (8.3)


26 (24.8)

31 (14.8)



86 (81.9)

178 (84.8)


191 (91.0)

388 (92.4)




19 (18.1)

32 (15.2)


19 (9.0)

32 (7.6)

SNP: single-nucleotide polymorphisms; NC: normal control.

Next, to investigate whether rs10847385 directly regulated IL-31 production, we made a promoter construct for transactivation and monitored luciferase activity (see Material and Methods). Baseline expression of luciferase activity was similar in transfected cells containing either allele A or C. However, when activated by anti-CD3/CD28 antibodies, allele A-transfected cells had significantly higher luciferase activity than those transfected with allele-C (Fig. 1B), indicating that C allele could cause lower transactivation, which would decrease expression of IL-31. This result was consistent with our in vivo data showing AD patients with allele type C had lower serum IL-31 and suggests that under inflammatory conditions, this IL-31 allele can downregulate IL-31 activities.

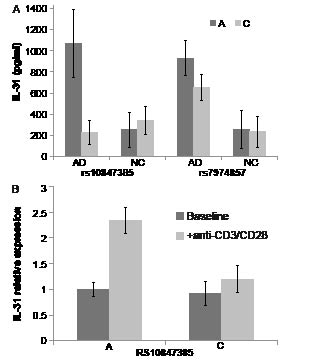

Fig. 1. (A) Blood was collected for IL-31 measurements by enzyme-linked immunoassay (ELISA) and genotyping by PCR from atopic dermatitis (AD) patients and normal controls (NC) (n = 105 and 210, respectively). IL-31 was shown in bar graph by diffrent rs10847385 and rs7974857 alleles (A vs. C). While controls showed no difference in their IL-31 levels based on their single-nucleotide polymorphism allele types, AD patients with allele C of rs10847385 had significantly lower levels of serum IL-31 (*p < 0.05). (B) Jurkat T cells were transfected with IL-31 promotor constructs with different rs10847385 alleles (A/C) linked with a luciferase reporter. Transfected Jurkat T cells were activated by anti-CD3 and anti-CD28. Luciferase activities measured in allele A/C transfected Jurkat cells were then determined (n = 3, *p < 0.05).



In this study, IL-31 SNPs were not associated with susceptibility to extrinsic AD, echoing the findings of Schulz’s study, which suggested that intrinsic but not extrinsic AD was associated with IL-31 SNP. However, differences in ethnicity, disease onset, and hospital-based design in these two studies may affect results. Although IL-31 SNPs are not associated with AD, IL-31 can affect AD by inducing eosinophils and keratinocytes to produce proinflammatory cytokines (9). In addition, IL-31 increases the TLR-2-dependent secretion of CCL2 after up-regulation of IL-31R in keratinocytes by IFN-γ (10). Our findings, that IL-31 allele can downregulate the expression of IL-31 only under inflammatory conditions, suggest that IL-31 acts as a disease modifier, but not a disease risk factor in AD.

One limitation of this study is that it was a relatively small case-control study. Another limitation is that SNPs other than the two SNPs selected for this study might also have undisclosed associations. Finally, site-directed mutagenic assay (11) in IL-31 might confirm the significance of the locus and clarify the mechanism of increased promoter activity. Nevertheless, by using bioinformatics tool TFSER from Japan, we found two putative binding sites near rs10847385, including Cap and Heat shock transcription factor (HSF) within 100 bp (unpublished observation).

In summary, IL-31-631 T>G polymorphism was significantly associated with IL-31 blood level, IgE level, and severity in extrinsic AD patients of Han Chinese origin in Taiwan, but not with their susceptibility to AD. The rs10847385 C allele contributed to inadequate function of the IL-31 promotor.


The authors acknowledge grant support from National Science Council (99-2314-B-037-007-MY3), National Health Research Institute (NHRI-100A1-PDCO-03000001), Kaohsiung Medical University (KMU), and KMU Center of Excellence for Environmental Medicine (98.2b).


  • Kelsay K. Management of sleep disturbance associated with atopic dermatitis. J Allergy Clin Immunol 2006; 118: 198–201.
  • Dillon SR, Sprecher C, Hammond A, Bilsborough J, Rosenfeld-Franklin M, Presnell SR, et al. Interleukin 31, a cytokine produced by activated T cells, induces dermatitis in mice. Nat Immunol 2004; 5: 752–760.
  • Takaoka A, Arai I, Sugimoto M, Yamaguchi A, Tanaka M, Nakaike S. Expression of IL-31 gene transcripts in NC/Nga mice with atopic dermatitis. Eur J Pharmacol 2005; 516: 180–181.
  • Sonkoly E, Muller A, Lauerma AI, Pivarcsi A, Soto H, Kemeny L, et al. IL-31: a new link between T cells and pruritus in atopic skin inflammation. J Allergy Clin Immunol 2006; 117: 411–417.
  • Bilsborough J, Leung DY, Maurer M, Howell M, Boguniewicz M, Yao L, et al. IL-31 is associated with cutaneous lymphocyte antigen-positive skin homing T cells in patients with atopic dermatitis. J Allergy Clin Immunol 2006; 117: 418–425.
  • Raap U, Wichmann K, Bruder M, Stander S, Wedi B, Kapp A, et al. Correlation of IL-31 serum levels with severity of atopic dermatitis. J Allergy Clin Immunol 2008; 122: 421–423.
  • Schulz F, Marenholz I, Folster-Holst R, Chen C, Sternjak A, Baumgrass R, et al. A common haplotype of the IL-31 gene influencing gene expression is associated with nonatopic eczema. J Allergy Clin Immunol 2007; 120: 1097–1102.
  • Hanifin J, Rajka G. Diagnostic features of atopic dermatitis. Acta Dermatol Venereol 1980; Suppl 92: 44–47.
  • Cheung PF, Wong CK, Ho AW, Hu S, Chen DP, Lam CW. Activation of human eosinophils and epidermal keratinocytes by Th2 cytokine IL-31: implication for the immunopathogenesis of atopic dermatitis. Int Immunol 2010; 22: 453–467.
  • Kasraie S, Niebuhr M, Baumert K, Werfel T. Functional effects of interleukin 31 in human primary keratinocytes. Allergy 2011; 66: 845–852.
  • Le Saux S, Rousseau F, Barbier F, Ravon E, Grimaud L, Danger Y, et al. Molecular dissection of human interleukin-31-mediated signal transduction through site-directed mutagenesis. J Biol Chem 2010; 285: 3470–3477.
