Content » Vol 94, Issue 5

Short communication

Novel TGM1 Missense Mutation p.Arg727Gln in a Case of Self-healing Collodion Baby

Kana Tanahashi1, Kazumitsu Sugiura1, Kenji Asagoe2, Yumi Aoyama3, Keiji Iwatsuki3 and Masashi Akiyama1*

1Department of Dermatology, Nagoya University Graduate School of Medicine, 65 Tsurumai-cho, Showa-ku, Nagoya, 466-8550, 2Division of Dermatology, National Hospital Organization Okayama Medical Center, and 3Departments of Dermatology, Okayama University Graduate School of Medicine, Dentistry, and Pharmaceutical Sciences, Okayama, Japan. *E-mail:

Accepted Sep 18, 2013; Epub ahead of print Jan 13, 2014

Collodion babies are newborns encased in a glistening membrane that cracks in a characteristic manner within 48 h and desquamates in large lamellae after a few days. Most collodion babies later develop one of the several types of autosomal recessive congenital ichthyoses (ARCI), such as lamellar ichthyosis (LI) or congenital ichthyosiform erythroderma; however, about 10% heal spontaneously (1). This healing condition is known as “self-healing collodion baby” or “self-improving collodion baby” (SHCB/SICB). Raghunath et al. (1) showed that this phenotype is possibly a hydrostatic pressure-sensitive phenotype of TGM1 mutations. The SHCB/SICB phenotype was subsequently reported in patients with ALOX12B and ALOXE3 mutations (2). To date, few reports on SHCB/SICB cases with TGM1 mutations have been published (1–4).

TGM1 is the most commonly involved gene in ARCI, and encodes transglutaminase-1 (TGase-1) (1, 5–8). Here, we describe an ARCI patient with a novel TGM1 mutation who presented at birth with a collodion membrane but spontaneously healed within 2 months without any skin manifestations.


A Japanese girl born to nonconsanguineous parents at 40 weeks gestation presented at birth with a collodion membrane but without ectropion or eclabium. Her skin spontaneously healed by the age of 2 months (Fig. 1A and B). The ethics committee of Nagoya University Graduate School of Medicine approved the present studies. The participants gave written informed consent. The coding regions of TGM1 (GenBank accession No. 359), ALOX12B and ALOXE3 were amplified from genomic DNA by PCR, as described previously (9). Direct sequencing of the patient’s PCR products revealed that the patient had the compound heterozygous TGM1 mutations p.Arg307Trp (c.919C>T) and p.Arg727Gln (c.2180G>A) (Fig. 1C), but had no mutation in ALOX12B or ALOXE3. The former mutation, p.Arg307Trp, was previously reported as a founder mutation in Japanese LI cases by our group (10, 11). The arginine residue mutated in the other mutation, p.Arg727Gln, in the present case is in the β-barrel 2 domain of TGase-1 (Fig. 2B). This arginine residue was confirmed to be highly conserved in vertebrates. p.Arg727Gln was not detected in the 100 control alleles (Fig. 2A) (data not shown). p.Arg307Trp was present in the mother and p.Arg727Gln was demonstrated as paternal (data not shown). The patient was diagnosed as having SHCB/SICB with compound heterozygous TGM1 mutations.


Fig. 1. Clinical features and TGM1 sequence data of the patient. The patient showed collodion membrane at birth (A). The skin manifestations healed completely by the age of 2 months (B). (C) Sequence data of TGM1 in the patient in exon 6 (left) and exon 14 (right). Arrows indicate c.919C>T (p.Arg307Trp) (heterozygous) and c.2180G>A (p.Arg727Gln) (heterozygous).

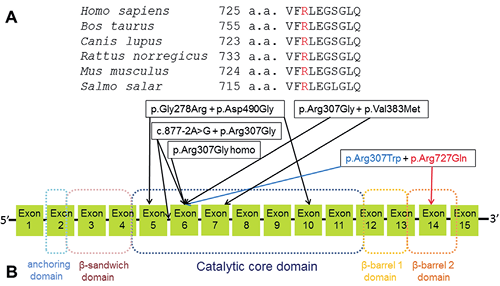

Fig. 2. Sequence alignments around the missense mutation and the summary of TGM1 mutations in the SHCB/SICB phenotype. (A) The sequence alignment of TGase-1. Arg727 is in red. The leucine residue at codon 727 of human TGase-1 is conserved among the TGase-1 of diverse species. (B) The TGase-1 protein domain structure and TGM1 mutations in SHCB in this study and in the literature. The present novel missense mutation p.Arg727Gln in the β-barrel domain is in red font. The other mutation in the present case, p.Arg307Trp, is in blue font. It has been reported to be a founder mutation in Japanese LI cases (10, 11).


Previously reported SHCB/SICB cases with TGM1 mutations had the homozygous mutation p.Arg307Gly, the compound heterozygous mutations p.Arg307Gly and c.877-2A>G, the compound heterozygous mutations p.Arg307Gly and p.Val383Met, or the compound heterozygous mutations p.Gly278Arg and p.Asp490Gly (1–4). Concerning the compound heterozygous mutations p.Gly278Arg and p.Asp490Gly, p.Asp490Gly is considered to be responsible for the SHCB/SICB phenotype because p.Gly278Arg is inactive under any conditions, but p.Asp490Gly has been proven inactive under high hydrostatic water pressure, such as in the uterus, and active under the lower-pressure conditions out of the uterus (1). In the compound heterozygous for p.Arg307Gly and c.877-2A>G, and the compound heterozygous for p.Arg307Gly and p.Val383Met, p.Arg307Gly possibly contributes to the SHCB/SICB phenotype, because the homozygous mutation p.Arg307Gly is known to cause the SHCB/SICB phenotype and c.877-2A>G is considered to bring a splicing error (not analysed in detail). In light of this, the mutations causing SHCB/SICB are limited to substitutions of the 2 residues p.Arg307 and p.Asp490 in the catalytic domains. In our report, one mutation was p.Arg307Trp, which is a founder mutation always associated with typical LI in the Japanese population (10, 11). We do not know the exact reason why p.Arg307Gly is associated with SHCB/SICB, but p.Arg307Trp is associated with typical LI. The difference in the side chain of the amino acid could explain the difference in the phenotype, i.e., tryptophan is the most voluminous amino acid, but glycine has a small side chain. Hence, we attribute the present case of SHCB/SICB to the novel mutation p.Arg727Gln in the β-barrel 2 domain. Several authors suggest that β-barrel domains, which are at the carboxyl-terminus of the gene, increase TGase-1 activity but are not essential for the function of the enzyme (12, 13). Arginine is a polar basic amino acid, but glutamine is a polar neutral amino acid. The reduction of charge in p.727Arg in β-barrel domains may affect the function of TGase-1 slightly. Thus, p.Arg727Gln may contribute to the disease onset and disease healing of SHCB/SICB. Mutations in the β-barrel 1 or β-barrel 2 domains have not been reported in SHCB/SICB. Even in typical LI, mutations in the β-barrel domains have been rarely found (14). Therefore, genotype-phenotype correlations related to the β-barrel domains in TGase-1 have not been determined (14).

In conclusion, we suggest for the first time that the missense mutation in the β-barrel 2 domain of the catalytic domains may cause SHCB/SICB.


The authors thank Ms. Haruka Ozeki and Ms. Yuka Terashita for their technical help in analyzing the TGM1 mutations. This study was supported in part by Grant-in-Aid for Scientific Research (A) 23249058 (to M.A.) from the Ministry of Education, Culture, Sports, Science and Technology of Japan and the “Research on Measures for Intractable Diseases” Project: Matching Fund Subsidy (H23-028) from the Ministry of Health, Labour and Welfare of Japan.


1. Raghunath M, Hennies HC, Ahvazi B, Vogel M, Reis A, Steinert PM, et al. Self-healing collodion baby: a dynamic phenotype explained by a particular transglutaminase-1 mutation. J Invest Dermatol 2003; 120: 224–228.

2. Vahlquist A, Bygum A, Gånemo A, Virtanen M, Hellström-Pigg M, Strauss G, et al. Genotypic and clinical spectrum of self-improving collodion ichthyosis: ALOX12B, ALOXE3, and TGM1 mutations in Scandinavian patients. J Invest Dermatol 2010; 130: 438–4

3. Hackett BC, Fitzgerald D, Watson RM, Hol FA, Irvine AD. Genotype-phenotype correlations with TGM1: clustering of mutations in the bathing suit ichthyosis and self-healing collodion baby variants of lamellar ichthyosis. Br J Dermatol 2010; 162: 448–4

4. Bourrat E, Blanchet-Bardon C, Derbois C, Cure S, Fischer J. Specific TGM1 mutation profiles in bathing suit and self-improving collodion ichthyoses: phenotypic and genotypic data from 9 patients with dynamic phenotypes of autosomal recessive congenital ichthyosis. Arch Dermatol 2012; 148: 1191–11

5. Oji V, Tadini G, Akiyama M, Blanchet Bardon C, Bodemer C, Bourrat E, et al. Revised nomenclature and classification of inherited ichthyoses: results of the First Ichthyosis Consensus Conference in Soreze 2009. J Am Acad Dermatol 2010; 63: 607–6

6. Akiyama M. Updated molecular genetics and pathogenesis of ichthiyoses. Nagoya J Med Sci 2011; 73: 79–

7. Grall A, Guaguere E, Planchais S, Grond S, Bourrat E, Hausser I, et al. PNPLA1 mutations cause autosomal recessive congenital ichthyosis in golden retriever dogs and humans. Nat Genet 2012; 44: 140–1

8. Israeli S, Khamaysi Z, Fuchs-Telem D, Nousbeck J, Bergman R, Sarig O, et al. A mutation in LIPN, encoding epidermal lipase N, causes a late-onset form of autosomal-recessive congenital ichthyosis. Am J Hum Genet 2011; 88: 482–4

9. Akiyama M, Sakai K, Yanagi T, Fukushima S, Ihn H, Hitomi K, et al. Transglutaminase1 preferred substrate peptide K5 is an efficient tool in diagnosis of lamellar ichthyosis. Am J Pathol 2010; 176: 1592–15

10. Sakai K, Akiyama M, Yanagi T, McMillan JR, Suzuki T, Tsukamoto K, et al. ABCA12 is a major causative gene for non-bullous congenital ichthyosiform erythroderma. J Invest Dermatol 2009; 129: 2306–23

11. Akiyama M, Takizawa Y, Suzuki Y, Ishiko A, Matsuo I, Shimizu H. Compound heterozygous TGM1 mutations including a novel missense mutation L204Q in a mild form of lamellar ichthyosis. J Invest Dermatol 2001; 116: 992–9

12. Kim SY, Kim IG, Chung SI, Steinert PM. The structure of the transglutaminase 1 enzyme. Deletion cloning reveals domains that regulate its specific activity and substrate specificity. J Biol Chem 1994; 269: 27979–279

13. Lai TS, Achyuthan KE, Santiago MA, Greenberg GS. Carboxyl-terminal truncation of recombinant factor XIII A-chains. Characterization of minimum structural requirement for transglutaminase activity. J Biol Chem 1994; 269: 24596–246

14. Herman ML, Farasat S, Steinbach PJ, Wei MH, Toure O, Fleckman P, et al. Transglutaminase-1 gene mutations in autosomal recessive congenital ichthyosis: summary of mutations (including 23 novel) and modeling of TGase-1. Hum Mutat 2009; 30: 537–547.
