Content » Vol 95, Issue 7

Investigative Report

A Case of Subepidermal Blistering Disease with Autoantibodies to Multiple Laminin Subunits who Developed Later Autoantibodies to Alpha-5 Chain of Type IV Collagen Associated with Membranous Glomerulonephropathy

Hirohiko Sueki1,2, Yoshinori Sato3, Shinpei Ohtoshi2, Tokio Nakada2, Ashio Yoshimura3, Chiharu Tateishi4, Dorin-Bogdan Borza5, William Fader6, Reza F. Ghohestani6, Yoshiaki Hirako7, Hiroshi Koga8, Norito Ishii8, Atsunari Tsuchisaka8, Hua Qian8, Xiaoguang Li8, and Takashi Hashimoto8

Departments of Dermatology, 1Showa University School of Medicine, Tokyo, 4Osaka City University Graduate School of Medicine, Osaka and 8Kurume University School of Medicine, and Kurume University Institute of Cutaneous Cell Biology, Fukuoka, Departments of 2Dermatology and 3Nephrology, Showa University Fujigaoka Hospital, Yokohama, Japan, 5Department of Microbiology and Immunology, Meharry Medical College, Nashville, 6Texas Institute of Dermatology, San Antonio, USA, 7Division of Biological Science, Graduate School of Science, Nagoya University, Aichi, Japan

We report a 68-year-old Japanese female patient with subepidermal blistering disease with autoantibodies to multiple laminins, who subsequently developed membranous glomerulonephropathy. At skin disease stage, immunofluorescence demonstrated IgG anti-basement membrane zone antibodies reactive with dermal side of NaCl-split skin. Immunoblotting of human dermal extract, purified laminin-332, hemidesmosome-rich fraction and laminin-521 trimer recombinant protein (RP) detected laminin γ-1 and α-3 and γ-2 subunits of laminin-332. Three years after skin lesions disappeared, nephrotic symptoms developed. Antibodies to α-3 chain of type IV collagen (COL4A3) were negative, thus excluding the diagnosis of Goodpasture syndrome. All anti-laminin antibodies disappeared. Additional IB and ELISA studies of RPs of various COL4 chains revealed reactivity with COL4A5, but not with COL4A6 or COL4A3. Although diagnosis of anti-laminin γ-1 (p200) pemphigoid or anti-laminin-332-type mucous membrane pemphigoid could not be made, this case was similar to previous cases with autoantibodies to COL4A5 and/or COL4A6. Key words: autoimmune hemidesmosome; laminin; membranous glomerulonephropathy; type IV collagen; subepidermal bullous disease.

Accepted Jan 24, 2015; Epub ahead of print Jan 29, 2015

Acta Derm Venereol

Takashi Hashimoto, MD, Department of Dermatology, Kurume University School of Medicine, and Kurume University Institute of Cutaneous Cell Biology, 67 Asahimachi, Kurume, Fukuoka 830-0011, Japan. E-mail:

Autoimmune subepidermal blistering diseases are occasionally reported in association with membranous glomerulonephropathy (1–6). However, it has not been clearly demonstrated whether this association is caused by common autoantigen or cross-reactivity with different antigens at basement membrane zone (BMZ). In this study, we present a patient with subepidermal blistering disease with autoantibodies to multiple laminin (LM) subunits, who subsequently developed membranous glomerulonephropathy.


A 68-year-old Japanese woman visited us in 2008, complaining of a 2-month history of bullous skin lesions with severe pruritus. The patient took aspirin 100 mg/day and candesartan cilexetil for hypertension for several years.

Physical examination revealed scattered tense vesicles 5–8 mm in size with or without erythematous bases on the limbs, trunk and face (Fig. 1a). Neither psoriatic lesions nor mucosal lesions were found. Histopathology revealed subepidermal bulla with inflammatory infiltrates of neutrophils, eosinophils and lymphocytes (Fig. 1b). Direct immunofluorescence (IF) showed linear deposits of IgG and C3 along epidermal BMZ (Fig. 1c). Indirect IF of normal human skin demonstrated IgG anti-BMZ antibodies, which reacted exclusively with dermal side of 1M NaCl-split skin (Fig. 1d). The results of laboratory tests were within normal ranges, and ELISAs showed negative results for both BP180 and BP230.


Fig. 1. Findings for skin lesions at bullous disease stage. (a) Clinical features on the face. (b) Histopathological features showing subepidermal bulla with inflammatory infiltrates of neutrophils, eosinophils and lymphocytes (H&E staining, × 400). (c) Result of direct immunofluorescence (IF) for C3 showing linear deposit to epidermal basement membrane zone (× 400). (d) Results of indirect IF of 1M NaCl-split skin at bullous disease stage showing reactivity exclusively with dermal side (× 200). (e) Results of indirect IF of 1M NaCl-split skin at glomerulonephropathy stage showing faint reactivity with dermal side (× 200).

Immunoblotting (IB) of normal human epidermal extract and recombinant proteins (RPs) of BP180 NC16a and C-terminal domains showed negative results. In contrast, IB detected the 200 kDa LM-γ1 (p200) in normal human dermal extract (Fig. 2a), and weakly LM-α3 and LM-γ2, but not LM-β3, in purified human LM-332 (Fig. 2b). Novel IB of hemidesmosome-rich fraction detected LM-α3, but not LM-β3, LM-γ2 or LM-γ1 (Fig. 2c). Novel IB of LM-521 trimer RP detected only LM-γ1 (Fig. 2d). Detailes for the various IB studies and other methods are described in Appendix S11.

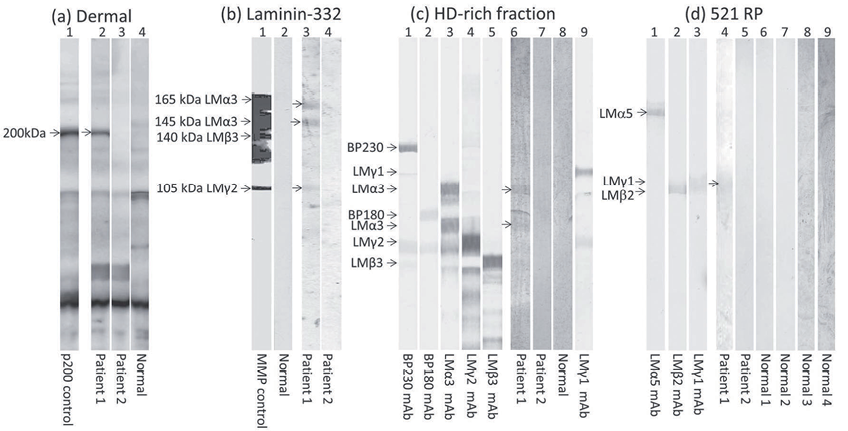

Fig. 2. Immunoblotting (IB) results. (a) IB of dermal extract.Anti-LM-γ1 monoclonal antibody (mAb) (lane 1) and patient serum taken at bullous disease stage (Patient 1, lane 2) reacted with the 200 kDa LM-γ1, while patient serum taken at kidney disease stage (Patient 2, lane 3) and normal human serum (lane 4) did not show positive results.(b) IB of purified human LM-332.Control anti-LM-332 mucous membrane pemphigoid serum (MMP) (lane 1), but not normal human serum (lane 2), reacted with LM-α3, LM-β3 and LM-γ2 subunits. Patient serum at bullous disease stage (Patient 1, lane 3), but not at kidney disease stage (Patient 2, lane 4), reacted relatively weakly with LM-α3 and LM-γ2.(c) IB of hemidesmosome (HD)-rich fraction. Anti-BP230 mAb (lane 1), anti-BP180 mAb (lane 2), anti-LM-α3 mAb (lane 3), anti-LM-γ2 mAb (lane 4), anti-LM-β3 mAb (lane 5) and anti-LM-γ1 mAb (lane 9) reacted with corresponding antigens. Patient serum at bullous disease stage (Patient 1, lane 6), but not at kidney disease stage (Patient 2, lane 7), and normal human serum (lane 8), reacted relatively weakly with LM-α3. (d) IB of LM-521 trimer RP. Anti-LM-α5 mAb (lane 1), anti-LM-β2 mAb (lane 2), anti-LM-γ1 mAb (lane 3) reacted with corresponding antigens. Patient serum at bullous disease stage (Patient 1, lane 4), but not at kidney disease stage (Patient 2, lane 5) and 4 normal human sera (lanes 6–9), reacted relatively weakly with LM-γ1.

Systemic prednisolone 45 mg/day did not improve the skin lesions. Addition of either 50 mg of diaphenylsulphone or colchicine 0.5 mg/day was also ineffective. Subsequently, the patient underwent 2 cycles of 4 consecutive plasma exchanges, which suppressed significantly the skin lesions. Remission was maintained on prednisolone 15 mg/day. No scar formation was recognised.

Approximately 3 years after the bullous lesions appeared, symptoms of nephrotic syndrome, including oedema, proteinuria and hypoproteinaemia, developed. Renal biopsy showed sclerotic changes of glomeruli (Fig. 3a). Direct IF showed granular deposition of IgG, IgG1 and IgG4 in glomeruli (Fig. 3b). Electron micro­scopic study demonstrated electron-dense deposits along subepithelial side of glomerular BMZ (GBM) (Fig. 3c). Circulating anti-GBM antibodies examined by commercial ELISA using RP of α-3 subunit of bovine type IV collagen (COL4A3) (NIPRO Co. Ltd., Tokyo, Japan) were negative (<10, cut-off <10 EU). A diagnosis of primary membranous glomerulonephropathy was made.

The serum taken at this stage was also subjected to all of our immunological studies. ELISAs showed negative results for both BP180 and BP230. Indirect IF showed weak reactivity with dermal side of 1M NaCl-split skin (Fig. 1e). All IB studies showed no positive results (Fig. 2a–d).


Fig. 3. Findings from kidney biopsy at glomerulonephropathy stage. (a) Histopathological features, showing sclerotic changes of glomeruli in histopathology (H&E staining, × 200). (b) Result of IgG direct immunofluorescence showing granular deposition (× 200).(c) Electron microscopic feature. Arrows indicate electron-dense deposits. Calibration bar = 2 µm.

In addition, we also performed ELISA and IB studies of RPs of various chains of type IV collagen (COL4).These studies suggested that our patient sera reacted with bacterial RP, but not mammalian RP of α5 chain (COL4A5) in IB. In contrast, our patient sera did not react with either α3 chain (COL4A3) or α6 chain (COL4A6) (details are described in Appendix S11).


When this case first showed skin lesions, clinical, histopathological and immunological features were compatible with anti-LMγ1 (p200) pemphigoid (7). However, while anti-LM-γ1 pemphigoid usually responds well to systemic corticosteroids, this case did not respond to high dose prednisolone. In addition, no psoriatic skin lesions were observed.

Although the presence of autoantibodies to LM-α3 and LM-γ2 suggested the diagnosis of anti-LM-332-type mucous membrane pemphigoid (8, 9), this case showed no mucosal lesions throughout the course. However, antibodies to LM-γ2 may not cause mucosal lesions in some cases (10). Thus, the pathogenic role of anti-LM-332 antibodies in our case remains uncertain. Alternatively, anti-LM-332 antibodies might be produced secondary from anti-LM-γ1 antibodies via an epitope-spreading phenomenon (11). Consequently, we made a tentative diagnosis of subepidermal blistering disease with autoantibodies to multiple laminin subunits. However, our patient might also suffer from a new entity of autoimmune bullous disease. The patient will be followed-up carefully, because autoantibodies to LM-332 may be associated with malignant tumours (12).

Intriguingly, our patient subsequently developed primary membranous glomerulonephropathy and the renal and skin biopsies showed similar direct IF findings. Since there are several common molecules in the epidermal and glomerular BMZs, including type IV collagen and LM-521 (13), our findings in this case may suggest common causes of bullous disease and glomerulonephropathy.

The time lag from the remission of bullous disease to the onset of glomerulonephropathy was estimated to more than one year. Circulating autoantibodies to various LM subunits were detected by IB of various antigen sources only at skin disease stage, but not at kidney disease stage. Furthermore, no anti-LM-γ1 pemphigoid case associated with membranous glomerulonephropathy has been reported, indicating that the autoantibodies to LM-γ1 did not react with renal BMZ. In addition, a previous study showed that the major LM in kidney BMZ is LM-521, whereas LM-332 is not expressed in kidney tissue at all (13). These issues suggest that antibodies to LMs did not directly cause the kidney diseases.

Anti-GBM nephritis, including Goodpasture syndrome, shows anti-GBM autoantibodies reactive with COL4A3, which is present in glomerular and pulmonary BMZs, but not epidermal BMZ (5, 6). Nonetheless, a case of Goodpasture syndrome showed reactivity with epidermal BMZ (14). In a case of concurrent anti-GBM nephritis reactive with COL4 and bullous pemphigoid reactive with BP180, the kidney and skin lesions were caused by different non-cross reactive antibodies (4). In addition, Ghohestani et al. (5, 6) reported cases with concurrent cutaneous and renal diseases, which showed autoantibodies to COL4A5 and/or COL4A6.

These previous studies prompted us to speculate that our patient had anti-COL4 autoantibodies. Firstly, a diagnosis of anti-GBM nephritis or Goodpasture syndrome was excluded by the pathological findings and absence of anti-GBM (COL4A3) antibodies in both commercial and home-made ELISAs.

Our additional studies using various COL4 RPs showed that this patient reacted with COL4A5, but not COL4A6.The anti-COL4A5 autoantibodies might play a role in development of kidney disease in our patient, as shown in the previous reports (4, 6).

Lastly, a recent study (15) showed that a majority of membranous glomerulonephropathy cases showed antibodies to phospholipase A2 receptor, which should be examined for our patient sera in the future.


We gratefully appreciate the secretarial work of Ms. Tomoko Tashima and Ms. Naomi Iwasa. We thank the patient for her participation.

The authors declare no conflicts of interests




1. Simon CA, Winkelmann RK. Bullous pemphigoid and glomerulonephritis. Report of four cases. J Am Acad Dermatol 1986; 14: 456–463.

2. Ross EA, Ahmed AR. Bullous pemphigoid-associated nephro­pathy: report of two cases and review of the literature. Am J Kidney Dis 1989; 14: 225–229.

3. Plaisier E, Borradori L, Hellmark T, Wattiaux MJ, Flageul B, Mougenot B, et al. Anti-glomerular basement membrane nephritis and bullous pemphigoid caused by distinct anti-alpha 3(IV)NC1 and anti-BP180 antibodies in a patient with Crohn’s disease. Am J Kidney Dis 2002; 40: 649–654.

4. Soine EJ, Nelson PS, Nesbitt LT, Jr. A patient with coexistent bullous pemphigoid and primary membranous glomerulonephropathy. J Am Acad Dermatol 2009; 60: 1042–1044.

5. Ghohestani RF, Rotunda SL, Hudson B, Gaughan WJ, Farber JL, Webster G, Uitto J. Crescentic glomerulonephritis and subepidermal blisters with autoantibodies to alpha5 and alpha6 chains of type IV collagen. Lab Invest 2003; 83: 605–611.

6. Ghohestani RF, Hudson BG, Claudy A, Uitto J. The alpha 5 chain of type IV collagen is the target of IgG autoantibodies in a novel autoimmune disease with subepidermal blisters and renal insufficiency. J Biol Chem 2000; 275: 16002–16006.

7. Dainichi T, Kurono S, Ohyama B, Ishii N, Sanzen N, Hayashi M, et al. Anti-laminin gamma-1 pemphigoid. Proc Natl Acad Sci U S A 2009; 106: 2800–2805.

8. Schmidt E, Zillikens D. Pemphigoid diseases. Lancet 2013; 381: 320–332.

9. Kirtschig G, Marinkovich MP, Burgeson RE, Yancey KB. Anti-basement membrane autoantibodies in patients with anti-epiligrin cicatricial pemphigoid bind the alpha subunit of laminin 5. J Invest Dermatol 1995; 105: 543–548.

10. Endo Y, Kato M, Kitoh A, Kore-Eda S, Fukuda S, Hashimoto T, et al. Pemphigoid without mucosal involvement showing autoantibodies against laminin-332 gamma2 subunit. Br J Dermatol 2010; 163: 1120–1122.

11. Fairley JA, Woodley DT, Chen M, Giudice GJ, Lin MS. A patient with both bullous pemphigoid and epidermolysis bullosa acquisita: an example of intermolecular epitope spreading. J Am Acad Dermatol 2004; 51: 118–122.

12. Sadler E, Lazarova Z, Sarasombath P, Yancey KB. A widening perspective regarding the relationship between anti-epiligrin cicatricial pemphigoid and cancer. J Dermatol Sci 2007; 47: 1–7.

13. Miner JH. The glomerular basement membrane. Exp Cell Res 2012; 318: 973–978.

14. Davenport A, Verbov JL, Goldsmith HJ. Circulating anti-skin basement membrane zone antibodies in a patient with Goodpasture’s syndrome. Br J Dermatol 1987; 117: 125–127.

15. Beck LH, Jr., Bonegio RG, Lambeau G, Beck DM, Powell DW, Cummins TD, et al. M-type phospholipase A2 receptor as target antigen in idiopathic membranous nephropathy. N Engl J Med 2009; 361: 11–21.
