Department of Neurobiology, Physiology and Behavior, University of California, Davis, USA
Basic mechanisms and pathways of itch signaling are reviewed, with an emphasis on the progress to date as well as remaining challenges in translating current knowledge to the clinical treatment of chronic itch. Recent studies reveal 3 subsets of pruriceptive sensory neurons highly expressing itch-related genes. Their fibers project into the spinal cord to activate neurons expressing gastrin releasing peptide (GRP) and its receptor (GRPR), which connect to neurons that express the substance P (NK-1) receptor and project to the parabrachial nucleus and thalamus. Spinal inhibitory interneurons release GABA, glycine and dynorphin to modulate segmental itch transmission. However, nearly all pruriceptive neurons also respond to algogens such as capsaicin. Alternative theories of itch-pain discrimination, such as intensity or spatial contrast, are based on the observation that focal stimulation of nociceptive nerve endings elicits itch while more wide-spread stimulation elicits pain. These findings cloud the issue of a labeled line for itch- a long-debated but currently unresolved challenge. In higher primates there is a dichotomy of histaminergic and non-histaminergic itch-signaling pathways which is less demarcated in rodents, suggesting species differences. A cardinal symptom of chronic itch is alloknesis, i.e., mechanical or touch-evoked itch. Recent evidence indicates that low-threshold mechanosensory afferents can access the spinal itch pathway, but are normally kept in check by inhibitory interneurons expressing neuropeptide Y (NPY). In chronic itch, NPY-mediated inhibition is reduced, allowing touch to excite itch-signaling pathways. These recent advances provide novel targets for development of therapeutic strategies to relieve chronic itch.
Key words: itch; pain; labeled-line coding; gastrin releasing peptide; alloknesis.
Accepted Oct 15, 2019; Published Jan 9, 2020
Acta Derm Venereol 2020; 100: adv00023.
Corr: Prof. Earl Carstens, Department of Neurobiology, Physiology and Behavior, University of California, Davis, 1 Shields Avenue, Davis, CA 95616 USA. E-mail: email@example.com
This paper reviews the basic mechanisms and pathways of itch signaling, emphasizing the progress to date as well as remaining challenges in translating current knowledge to the clinical treatment of chronic itch. Major questions that are addressed include: is itch signaled by a labeled-line pathway separate from that for pain; can alternative theories explain the ability to distinguish between itch and pain; are there specific markers of itch (such as gastrin releasing peptide and its receptor); are there histaminergic and non-histaminergic itch-signaling pathways? We also address challenges in understanding touch-evoked itch (alloknesis) as a symptom of chronic itch.
Like pain, acute itch provides a warning signal for the organism to scratch away insects or plant spicules from the skin surface or to dig out invasive parasites. However, chronic itch lasting > 6 weeks does not serve a useful function but instead imposes suffering, high socioeconomic costs, and reduces the quality of life. It has been estimated that itchy skin conditions such as atopic dermatitis or psoriasis affect upwards of 10% or more of the general population with associated annual health care and economic costs in the billions of dollars (1–6). Most types of chronic itch are resistant to antihistamines, so there is a pressing need to develop novel drugs and other treatment strategies. This is one of the great challenges for translational itch research. Optimism is warranted based on recent research that has led to new effective treatments for chronic itch (7).
Huge strides have been made in the past decade in our understanding of how itch is transduced and transmitted from the periphery into the central nervous system. A schematic overview of itch processing is shown in Fig. 1. A wide variety of itch mediators interact with their cognate receptors that are expressed in the free nerve endings of pruriceptive afferents in the skin. Fig. 1 provides a partial list. Histamine is the most well-known itch mediator, acting at histamine H1 and H4 receptors linked to TRPV1, the heat- and capsaicin-sensitive ion channel (8, 9), which opens to depolarize the nerve ending and thereby activate voltage sensitive sodium channels (Nav 1.7, 1.8) to initiate action potentials in the afferent fiber. Many non-histaminergic itch mediators act via TRPA1 (10), and recent reports implicate TRPV4 in histamine, serotonin and chloroquine itch transduction (11–13). Single-cell RNA sequencing has been used recently to categorize 11 subpopulations of dorsal root ganglion (DRG) cells, with 3 largely nonpeptidergic (NP) groups expressing genes associated with itch: NP1 (MrgprD), NP2 (MrgprA3), and NP3 (brain natriuretic peptide [BNP] and somatostatin) (14). MrgprD, MrgprA3, BNP and somatostatin have all been implicated in itch (15–18). In addition, neuroimmune interactions have been implicated in chronic itch. Recent studies have implicated IL-31 (19, 20), IL-4 and IL-13 (21) in itch and itch sensitization, leading to the development of biologics and antagonists that block activation of sensory neurons by cytokines (7). Clearly, improved understanding of the peripheral transduction of itch and immune function is already addressing the challenge of translating basic research into more effective treatments for chronic itch.
Pruriceptive afferent fibers transmit signals into the spinal cord dorsal horn, where they release neuropeptides including BNP (17), possibly gastrin releasing peptide (GRP) (22, 23), substance P (23), neuromedin B (24), and somatostatin (25) as well as the neurotransmitter glutamate (see below). The spinal circuitry includes excitatory interneurons that express GRP and substance P (26, 27), as well as itch-inhibitory interneurons expressing GABA, glycine and dynorphin (28–31) (Fig. 1). Projection neurons ultimately give rise to ascending itch-signaling pathways to the parabrachial nucleus and somatosensory thalamus. A high percentage of ascending projection neurons express the NK-1 receptor (32, 33). A majority of antidromically identified spinothalamic and spinoparabrachial projection neurons in rats respond to intradermal injection of pruritogens, with most also responding to the algogens capsaicin and mustard oil (34, 35). Using a double-label strategy, we observed similar proportions of retrogradely labeled spinothalamic and spinoparabrachial neurons that co-express the activity marker, c-fos, following intradermal injection of histamine, chloroquine or capsaicin (36). Finally, the spinal itch-signaling circuitry is very likely under descending modulatory influences from the brainstem, although this has only begun to be experimentally addressed (37, 38).

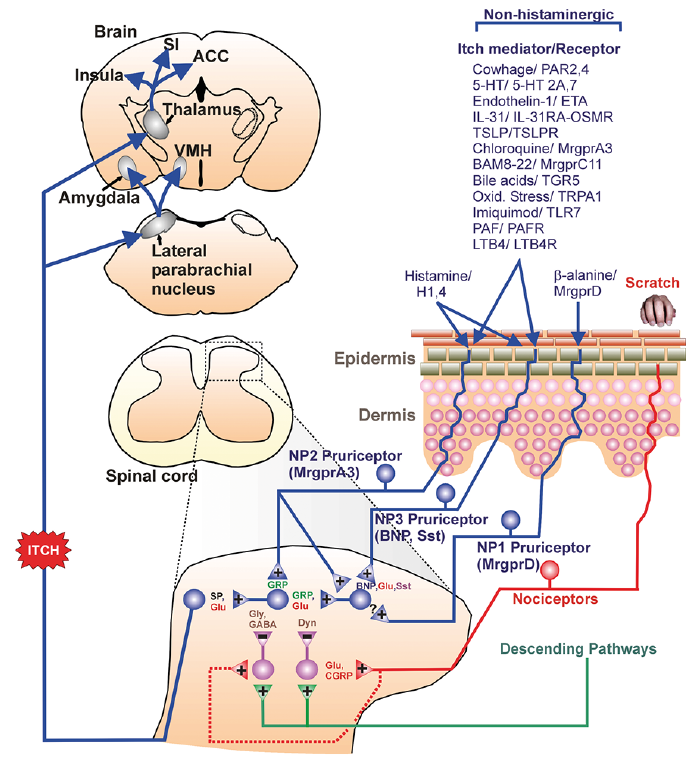

Fig. 1. Schematic of itch-signaling pathways. 5-HT: 5-hydroxytryptamine (serotonin); ACC: anterior cingulate cortex; BNP: brain natriuretic peptide; CGRP: calcitonin gene related peptide; Dyn: dynorphin; Glu: glutamate; Gly: glycine; GRP: gastrin releasing peptide; IL: interleukin; LTB4: leukotriene B4; Mrgpr: Mas-related G-protein coupled receptor; PAF: platelet activating factor; PAR: protease-activated receptor; SI: primary somatosensory cortex; SP: substance P; Sst: somatostatin; TLR: toll-like receptor; TLSP: thymic stromal lymphopoietin.
On the one hand, there is evidence that spinal transmission involving the neuropeptide GRP provides a specific pathway for itch transmission (discussed further below). On the other hand, based on neural recordings from peripheral and second- or higher-order neurons in the spinal cord and brain, it is evident that neurons that respond to pruritogens invariably also respond to algogens such as capsaicin, mustard oil, and other noxious stimuli. Thus, there appear to be few if any itch-specific neurons, implying that itch must be distinguished from pain (and other dysesthetic sensory qualities) by some mechanism that can decode activity in non-selective neurons. A great challenge of basic itch research is to reconcile these seemingly disparate observations to understand how itch is conveyed to the brain and how it is discriminated from pain and other sensory qualities.
There is much evidence that activation of pruritogen-sensitive primary afferent fibers elicits a sensation of itch via a specific “labeled line” pathway. An older study using electrical stimulation at discrete sites on the skin surface reported that the intensity of the evoked itch increased as a function of increasing stimulus frequency but never transitioned to pain (39). A seminal observation was that mechanically insensitive C-fibers recorded by microneurography responded to cutaneous application of histamine, such that the action potential firing pattern closely paralleled the time course of concomitant itch sensation (40). More recent studies suggest that activation of specific primary afferents elicits itch, even though the afferents respond to algogenic as well as pruritogenic stimuli. For example, MrgprA3 is a Mas-related G-protein-coupled receptor expressed in sensory nerve endings that respond to the itchy antimalarial drug chloroquine (15). When TRPV1 (the capsaicin and heat-sensitive receptor) is genetically engineered into sensory neurons expressing MrgprA3 in otherwise TRPV1-null mice, capsaicin activation of these neurons elicits itch (scratching) rather than the pain behavior that is normally elicited by capsaicin (41). Moreover, MrgprA3-expressing sensory nerves responded not only to chloroquine but also capsaicin and other chemicals, indicating that they are not itch-specific (41). Optogenetic activation of MrgprA3-expressing peripheral afferents also elicited itch-related scratching behavior (27). These findings indicate that activation of MrgprA3-expressing nerve endings elicits itch, regardless of whether they are activated by pruritic, algogenic or artificial stimuli. This implies that although the MrgprA3-expressing afferents are not exclusively activated by itchy stimuli, they access circuits at higher levels of the nervous system that selectively signal itch but not pain.
This concept is also reflected in a “population coding” theory, which is similar to the selectivity theory (Fig. 2A). Using calcium imaging of DRG sensory neurons, we found that most if not all neurons that responded to itch mediators additionally responded to capsaicin and mustard oil (42, 43). The same was true for superficial dorsal horn neurons (44). Similarly, high percentages of neurons in the ventral posterior medial and posterior triangular thalamic nuclei responded to pruritogens as well as capsaicin (45). We postulated that pruritogen- and algogen-sensitive DRG and spinal dorsal horn neurons signal itch, whereby these non-selective spinal neurons access itch-specific central mechanisms (Fig. 2A). In contrast, pruritogen-insensitive but algogen-sensitive neurons signal pain. Note that this idea still embodies separate, central labeled line mechanisms for itch and pain. Pain-evoking stimuli would activate both populations of neurons, implying that itch and pain are elicited simultaneously. In this case, pain sensation dominates due to the ability of nociceptive spinal input to activate itch-inhibitory interneurons (Fig. 2A) (46), consistent with the selectivity theory of itch. Itch perception may also be masked by stronger pain.

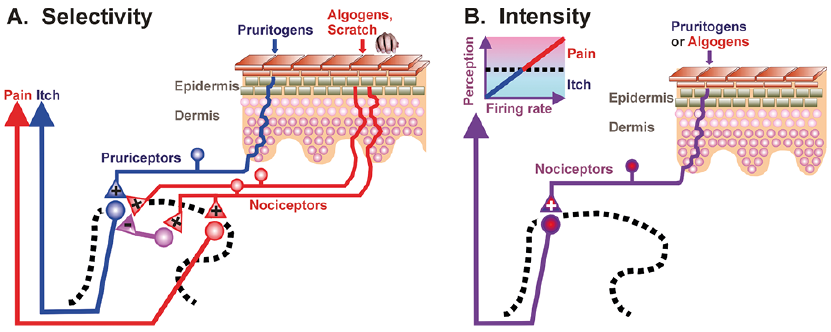

Fig. 2. Itch theories. A: selectivity (similar to population coding). B: intensity theory. See text for explanation. +: excitatory synapse; –: inhibitory synapse.
A role for GRP in itch was first demonstrated by a significant reduction in pruritogen-evoked scratching, but not pain behavior, in transgenic mice lacking the GRP receptor (GRPR) (22). Neurotoxic destruction of GRPR-expressing spinal neurons also significantly attenuated pruritogen-evoked scratching but not pain behavior (47). These findings were recently corroborated by the report that chemogenetic activation of GRP-expressing dorsal horn neurons elicited behavioral signs of itch but not pain (48). These data strongly support GRP and GRPR expressed in spinal neurons as itch-specific markers.
However, another recent study reported that selective activation of GRP-expressing spinal neurons elicited behavioral signs of both itch and pain (27). The authors genetically engineered TRPV1 into GRP-expressing spinal neurons in otherwise TRPV1-null mice. Intrathecal administration of capsaicin dose-dependently elicited behavioral signs of itch (scratching) as well as pain (licking). At higher doses of capsaicin (1–20 µg), pain (but not itch) responses decreased and were rescued by administration of the µ-opioid antagonist naloxone. The authors suggested that high-dose capsaicin triggered an opioid mechanism that reduced pain but not itch, and that a common population of GRP-expressing spinal neurons signals both itch and pain. This is consistent with the intensity theory of itch (Fig. 2B), which postulates that itch is signaled by a lower firing rate and pain by a higher firing rate in a common population of spinal neurons. Indeed, capsaicin elicited much higher firing rates in GRP-expressing spinal neurons compared to those elicited by the pruritogens SLIGRL, chloroquine or histamine (27). In general, capsaicin and mustard oil elicited consistently higher firing rates compared to pruritogens in spinal dorsal horn neurons, including spinothalamic projection neurons (49). Thus, there is conflicting evidence as to whether GRP- and GRPR-expressing spinal neurons are itch-specific or signal both itch and pain, a challenge to theories of itch-pain discrimination that requires future studies to resolve.
Besides GRP, neuromedin B (24), brain natriuretic peptide (BNP) (17), glutamate (50) and substance P (51) have also been implicated in the spinal transmission of itch. We found that individual intrathecal delivery of receptor antagonists of GRP (RC-3095), substance P (L-733060) or the AMPA glutamate receptor (CNQX), partially reduced scratching behavior and spinal neuronal responses to chloroquine, while a combination of all 3 antagonists completely inhibited these responses (52). This is supported by another study reporting that of dorsal horn neurons responsive to intradermal histamine or chloroquine, some responded to intrathecal delivery of BNP or GRP, but less commonly to both (53). These findings suggest that there may be parallel spinal path-ways for itch, each utilizing these neurotransmitters/neuropeptides to different extents. CNQX almost completely abolished scratching and neuronal responses to histamine, implicating glutamate as the primary spinal neurotransmitter in histaminergic itch (52). These studies provide points of intervention in the spinal cord to block the transmission of itch signals.
A further complication to our understanding of itch mechanisms is the finding that a dominant sensation of itch, together with sub-dominant nociceptive sensations (burning, stinging, pricking), were elicited by insertion of either a single histamine-loaded, or capsaicin-loaded, or native cowhage spicule into the skin (54). This implies that highly localized activation of a minimal number of nociceptive nerve endings in the skin by either pruritogenic or algogenic chemicals is sufficient to elicit a dominant sensation of itch. This supports the “spatial contrast” theory of itch, which holds that limited activation of nociceptive nerve endings is itchy, while activation of a greater number of nerve endings over a broader area (e.g., by intradermal injection of capsaicin) is painful, possibly due to disruption of a specific pattern for itch via the activation of many nociceptors. This concept was suggested as a possible mechanism of neuropathic itch following nerve injury that results in degeneration of most but not all C-fibers, such that activation of the few spared fibers elicits a sensation of itch (55). The challenge remains to explain how either itch or pain results from localized patterns of activation of nociceptive C-fibers.
It is a dogma that there are two types of itch, histaminergic and non-histaminergic. In humans, histaminergic itch is mediated by the histamine-sensitive, mechanically insensitive C-fiber afferents mentioned above (40, 56). In contrast, non-histaminergic itch can be elicited by spicules of cowhage, which contain proteases (57, 58). Cowhage excites mechanically sensitive polymodal nociceptors (56, 59). The duality of histamine- and cowhage-sensitivity applies to non-human primates as well, since intradermal injections of histamine or placement of cowhage spicules activated largely separate populations of spinothalamic tract neurons (60). However, in rodents there appears to be greater overlap in primary and secondary sensory neurons responsive to histamine and non-histaminergic itch mediators. Using calcium imaging of mouse DRG and trigeminal ganglion (TG) cells, it was variously reported that 100% (15), 50% (61) or 17–23% (62) of chloroquine-responsive cells also responded to histamine. Using in vivo recording from identified MrgprA3-expressing DRG cells in mice, 78% (7/9) responded to both histamine and chloroquine (41). Recordings from mouse spinal dorsal horn neurons revealed that 47–71% of chloroquine-responsive neurons also responded to histamine (63). In rat somatosensory thalamus, all 7 chloroquine-responsive neurons that were additionally tested with histamine responded, although it is noted that a large number of histamine-responsive thalamic neurons did not respond to chloroquine (45). These data imply that histaminergic and non-histaminergic pathways may be more segregated in humans and non-human primates compared to rodents. A challenge for the field is to understand the limitations of rodent models for translation to human itch.
Cardinal symptoms of chronic itch are ongoing (“spontaneous”) itch, alloknesis (mechanical or touch-evoked itch), and hyperknesis (increased itch to a normally itchy or punctate mechanical stimulus). In healthy normal mice, lightly touching the skin does not elicit any behavioral signs of itch. However, following intradermal injection of histamine and other pruritogens, light touch elicits immediate scratch bouts – a model of alloknesis (64). Chemogenetic silencing of spinal neuropeptide Y (NPY) – expressing neurons led to increased touch-evoked scratching (65), and intrathecal delivery of NPY-1 receptor agonists reduced touch-evoked scratching (66), implying that the NPY-expressing neurons normally inhibit itch elicited by low-threshold mechanoreceptors. Scratching elicited by intradermal chloroquine, but not mechanical stimulation, was attenuated by antagonizing or ablating GRPR-expressing neurons, implying that mechanical itch is independent of, or converges downstream of GRP-GRPR signaling in the spinal itch circuit (Fig. 3). A reduction in the number of cutaneous Merkel cells and reduced expression of the mechanotransduction channel piezo2, as occurred in aged mice or under dry skin conditions, was associated with increased alloknesis, while chemogenetic activation of Merkel cells prevented alloknesis in dry skin (67). This suggests that Merkel cells connected to slowly adapting type I (SAI) afferents excite NPY-expressing interneurons to inhibit spinal itch transmission. It was very recently reported that activation of neurons expressing the NPY-1 receptor promotes mechanical itch (68). Mechanical itch was not affected following ablation of spinal neurons expressing the NK-1 receptor, implying that mechanical itch is transmitted via a pathway independent of that for chemical itch (Fig. 3). NPY-mediated inhibition can be overcome by mechanoreceptor activation of NPY-1 receptor-expressing neurons to drive the mechanical itch-signaling pathway under conditions in which Merkel cell-SAI input is reduced (Fig. 3).
A number of animal models have been developed to mimic various types of chronic itch and alloknesis, including atopic dermatitis, psoriasis and others (69, 70). Repeated topical application of ovalbumin induced an atopic dermatitis-like condition in mice, characterized by skin hyperplasia and lesions, increased IgG and Th2 cytokines, and importantly, increased spontaneous scratching behavior, alloknesis and hyperknesis (32). Alloknesis, but not hyperknesis or spontaneous scratching, was nearly abolished in OVA-treated mice that received intrathecal injection of substance P-saporin but not bombesin-saporin. This implies that the effect of low-threshold mechanoreceptor input to inhibit itch signaling neurons occurred downstream of GRPR-expressing neurons but requires NK-1 receptor-expressing neurons, supporting the idea that mechanoreceptive input converges onto the chemical itch-signaling pathway (Fig. 3; dashed line connecting NPY-1R to NK-1R). Consistent with this, intrathecal NPY agonists suppressed both chemically- and mechanically-evoked itch behavior (66).
Given that alloknesis is quite bothersome to patients suffering from many types of chronic itch, a challenge to the field is to better understand how low-threshold mechanosensory input interacts with spinal itch-signaling pathways and potential anti-alloknesis interventions targeting spinal NPY1 receptors.

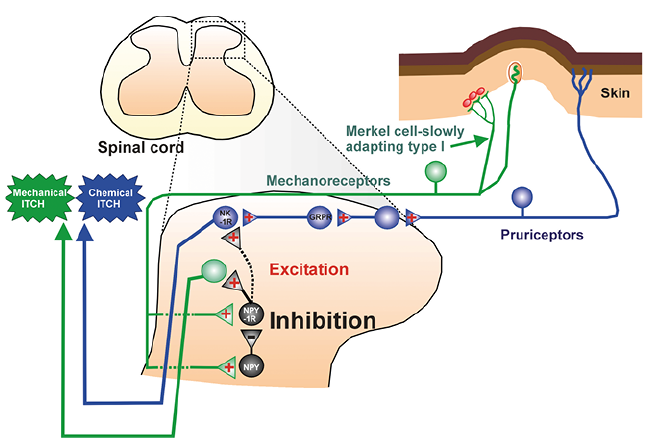

Fig. 3. Schematic of mechanical itch (alloknesis). See text for explanation. GRP: gastrin releasing peptide; GRPR: gastrin releasing peptide receptor; NK-1R: neurokinin-1 receptor; NPY: neuropeptide Y; NPY-1R: neuropeptide Y-1 receptor; +: excitatory synapse; –: inhibitory synapse.
The preceding text has identified a number of challenges arising from basic itch research to explain how itch can be discriminated from pain, and to translate our increasing knowledge of itch signaling into clinical treatment. Given the remarkable progress of the past decade and the current strong interest in itch research, several novel approaches to the treatment of chronic itch are already being used and more can be expected in the near future. Nevertheless, it has been debated for more than 100 years whether itch and pain are signaled by separate labeled-line pathways or by a common population of non-specific neurons. This debate continues unresolved up to the present, with arguments favoring both concepts.
The author’s work has been supported by a grant from the National Institute of Arthritis, Musculoskeletal and Skin Diseases, National Institutes of Health (AR057194).
